For electronics manufacturers managing high-mix, low-volume production or requiring dedicated offline batch testing, flexibility and precision are paramount. Enter the DaoAI P1& P2, the Offline 2D PCBA AI AOI system designed to bring the power of Visual Foundation Models to your quality control process
1.AI-Driven Efficiency: Setup in Minutes
The DaoAI P1 &P2 solve one of the biggest pain points in AOI: setup time.
- No CAD Required: You can complete modeling in just 5 minutes using a single "Golden Sample".

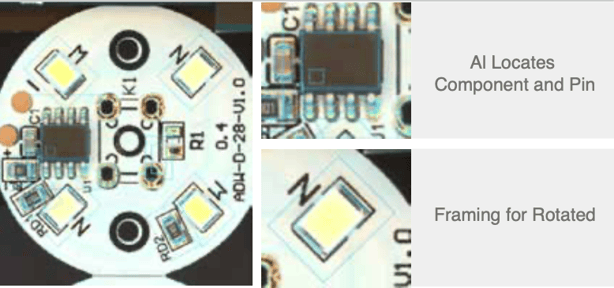

- Automated Programming: The AI automatically detects component positions and generates bounding boxes without needing coordinate data.

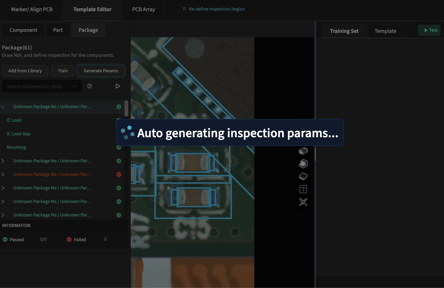

- Intelligent Thresholds: Instead of manual tuning, the AI learns color distributions from good parts to auto-generate inspection thresholds.
2.Visual AI: Smarter Detection
Traditional algorithms often struggle with "overkill" (false alarms) or missed defects when backgrounds and components have similar colors. The P1 & P2 uses Visual AI to accurately identify:

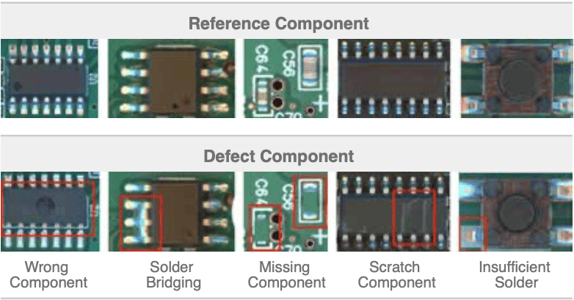

- Component Defects: Missing parts, wrong components, polarity errors, and scratches.
- Solder Issues: Solder bridging, insufficient solder, tombstoning, and more.
3.Built for Versatility
The P1 & P2 are designed to fit seamlessly into diverse production environments.
- Flexible Board Handling: Both support PCB sizes ranging from 0.5x50mm up to 470x330mm, with auto-clamping hardware included.
- Process Coverage: Whether you are inspecting Solder Paste, Red-Glue (SMT adhesive), or Post-Wave Soldering assemblies, the P1 & P2 handle it all.
- Advanced Optics: It utilizes dual telecentric optical lenses combined with multispectral ultra-high-speed RGB six-channel lighting to deliver distortion-free images and optimal contrast, regardless of component material.
- Resolution：
Contact us for a demo today.
