High-Precision 3D Inspection Camera with HDR Imaging

ENHANCED 3D INSPECTION ACROSS ALL SURFACES

Redefine Inline 3D Appearance and Dimension Inspection

Equipped with 18 megapixel CMOS Image Sensor

Twice the Speed of USB 3.0 with Extended Range

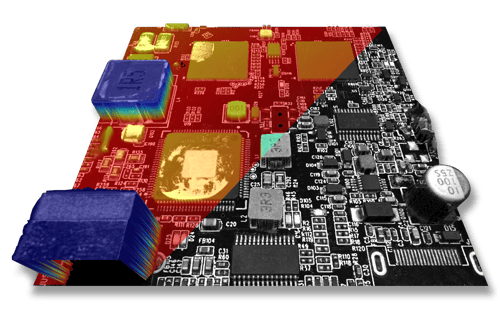

PCB版点云分割效果图1
Screenshot 2025-04-30 at 11.25.46 AM

Clear Imaging with 3D HDR Technology

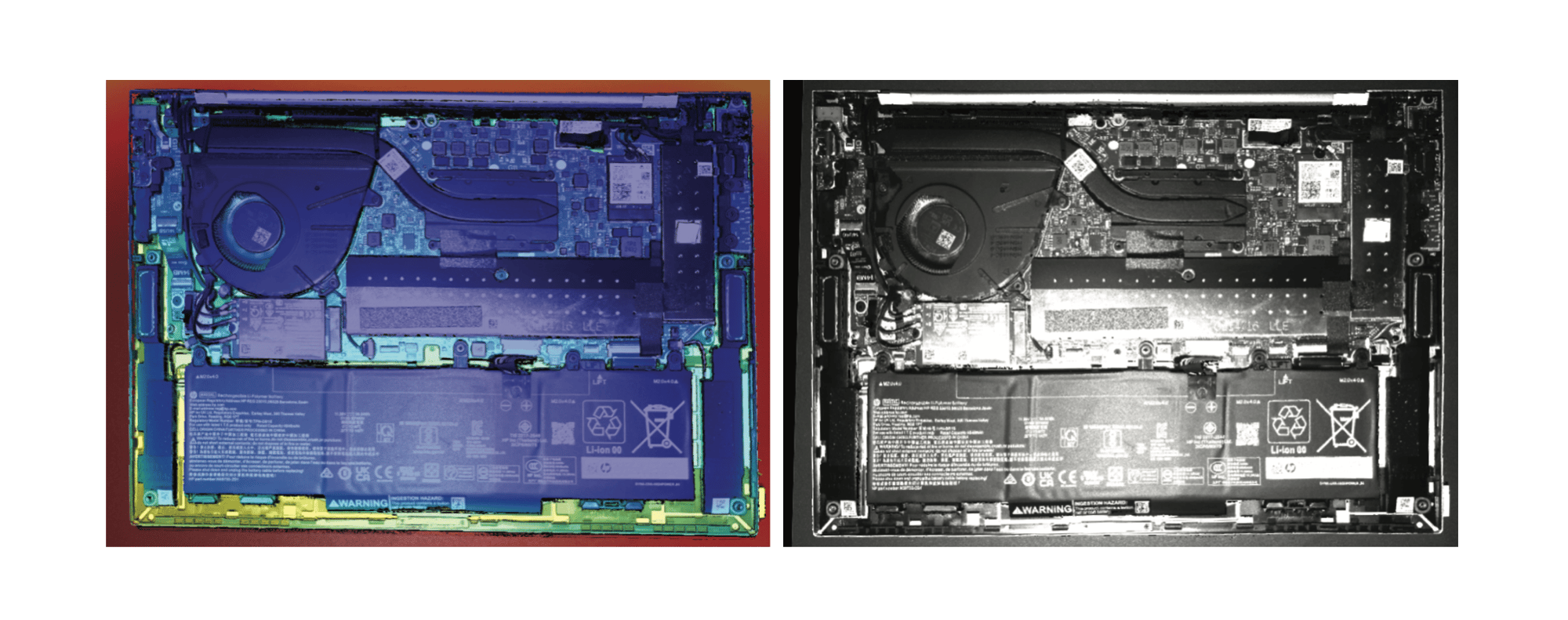

3D HDR algorithm enables clear imaging of both dark and reflective objects in a single capture. Without HDR, capturing black objects often results in overexposed highlights on reflective surfaces—and vice versa.

图像 (46)

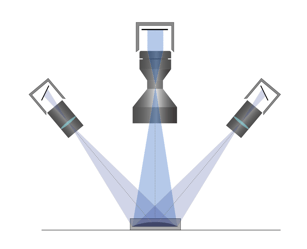

Dual-projector design ensures uniform brightness across the measurement plane. This configuration also prevents contrast distortion in point cloud reconstruction, delivering cleaner and more accurate data.

Parallel Processing

Our system supports parallel image acquisition and processing. While 3D reconstruction runs in the background, the camera moves to the next capture point—maximizing speed and efficiency.

paralle processing

Point Cloud Filters

We support various types of filters, such as contrast filter, outlier filter, cluster filter, Gaussian filter, hole filling, etc. For black objects, reflective objects, complex objects, and others, we can further remove invalid points in the point cloud to improve its quality.

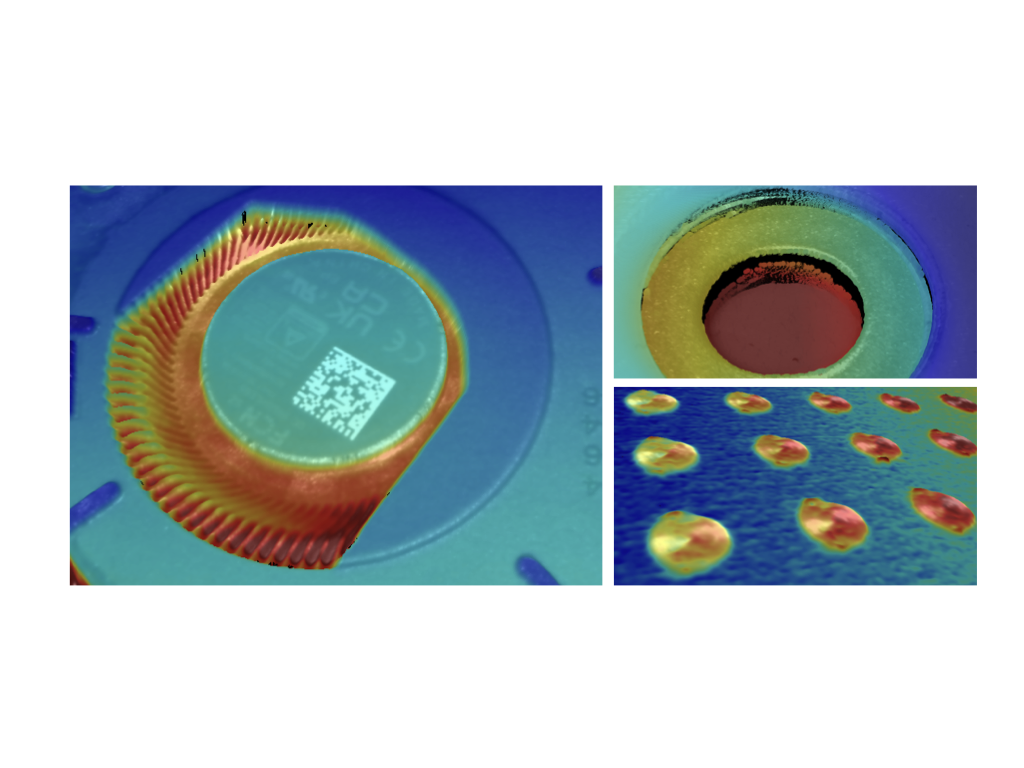

AQ060.001-2
Camera Spec

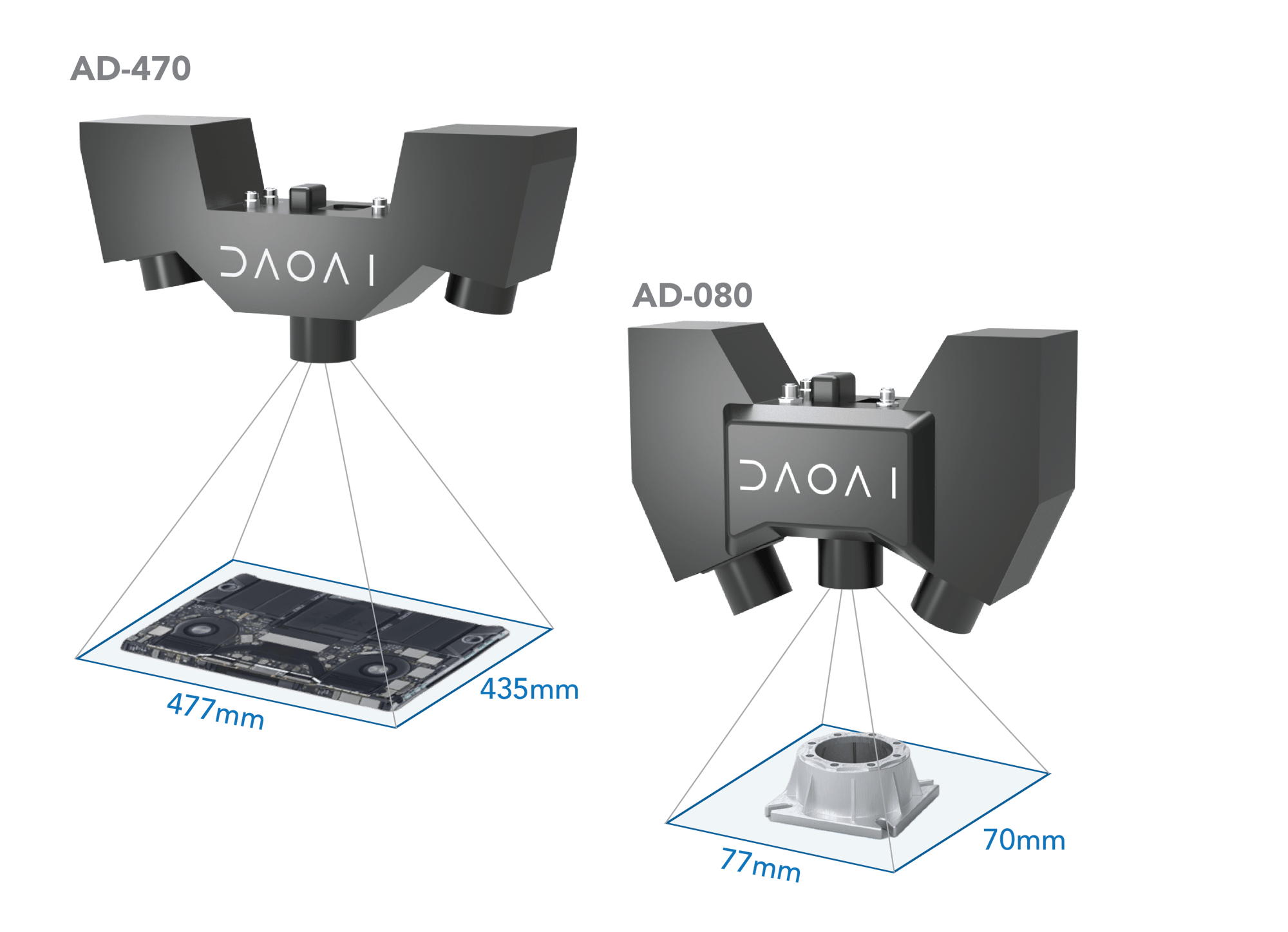

  AD-470 AD-080
Working Distance 510mm 186mm

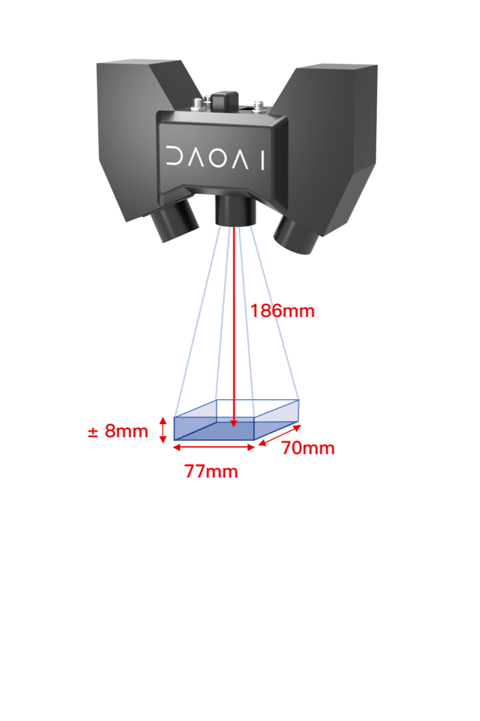

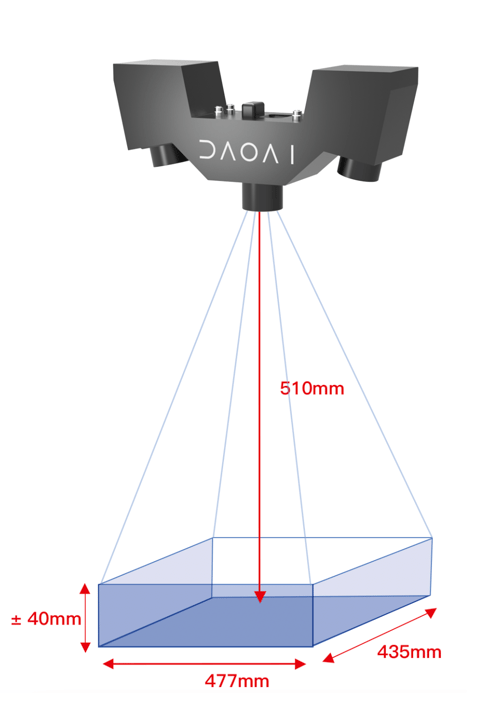

FOV 477x435mm@510mm 77x70mm@186mm
Measurement Range ±40mm ±8mm
Repeatability 40um 4um
Capture time ~980 ms
3D reconstruction ~800 ms
Image Pixel 18MP
Resolution  4496x4096
Connector 10-GigE Ethernet Adapter
Power 24V DC 12A
Light  White LED
Cooling System Passive
Supports independent control of 2D and 3D measurements; compatible with external light source.



Recommended PC Spec
CPU Intel Core i7-10700K
RAM 32 GB
Storage 1TB SSD + 4TB HDD
Power Supply 850W
GPU NVIDIA RTX 4080 (MIN:3060)
Operating System  Windows 10 or later
Adapter 10-GigE Ethernet Adapter
Ethernet Ports At least 2 GigE Ethernet Ports



Camera FOV Image
AD-470 AD-080
