AQ-06011

360 Degree

Appearance and Dimension Measurement

3D Inspection Camera-AQ060

Redefine Inline 3D Appearance and Dimension Inspection

Equipped with 18 megapixel CMOS Image Sensor
Higher than Most 3D Cameras on the Market

PCB版点云分割效果图1
AQ0601.002

Telecentric Lens to Ensure Accurate Inspection

DaoAI 3D camera is equipped with high precision telecentric lens which minimizes measurement error due to angle difference. Ensure that images are processed at their actual dimensions without any blind spots.

AQ060.001

Screenshot 2025-04-25 at 16.39.33





The system captures high-resolution full-color 2D images by combining RGB lighting with a monochrome camera, enabling detailed color inspection while ensuring precise 3D measurement.

Parallel Processing

Our system supports parallel image acquisition and processing. While 3D reconstruction runs in the background, the camera moves to the next capture point—maximizing speed and efficiency.

paralle processing

Point Cloud Filters

We support various types of filters, such as contrast filter, outlier filter, cluster filter, Gaussian filter, hole filling, etc. For black objects, reflective objects, complex objects, and others, we can further remove invalid points in the point cloud to improve its quality.

AQ06022.001

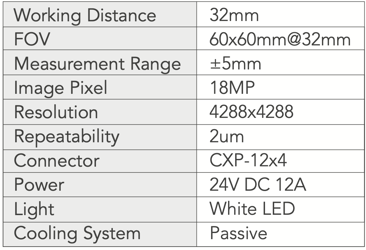

Camera Spec

Screenshot 2025-04-25 at 17.30.50

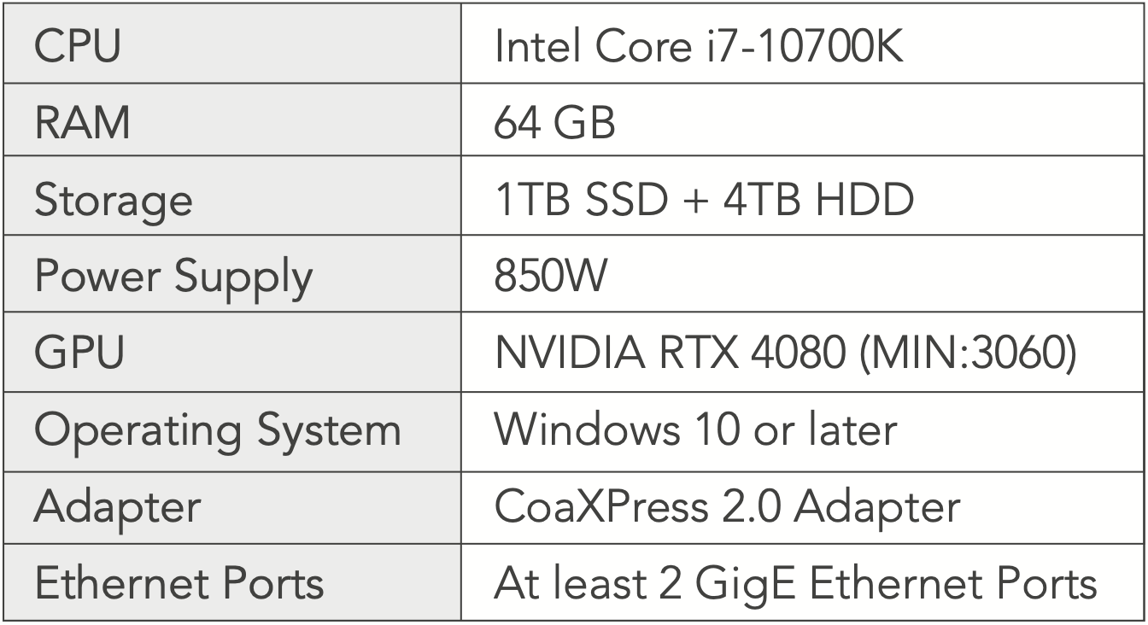

Recommended PC Spec

Screenshot 2025-04-25 at 17.32.25
