Integrating Workflow Canvas™ with DaoAl's AOl System

 Feb, 2025. Vancouver

Revolutionizing Industrial Automation

In the era of Industry 4.0, manufacturers are continuously seeking innovative solutions to enhance efficiency, minimize defects, and optimize production workflows. By integrating Workflow Canvas™ with DaoAI’s high-precision Automated Optical Inspection (AOI) system, manufacturers can unlock unprecedented levels of automation and intelligence in their production lines.



Seamless Automation with Workflow Canvas™

SiemensWorkflow Canvas™ provides an intuitive graphical workflow design platform, enabling users to drag and drop modular components to create seamless workflows—from inspection to defect resolution.

The process works as follows:
  1. PLC Initiates Inspection: The PLC system sends an inspection request to Workflow Canvas™, which then orchestrates the workflow.
  2. AOI System Execution: Workflow Canvas™ forwards the request to DaoAI’s AOI system, which performs high-precision inspections.
  3. Inspection Analysis: The AOI system captures images, analyzes the data, and detects anomalies such as assembly misalignment or defects.
  4. Decision Making: Based on the results, the system determines whether the product is OK or NG (No Good).
  5. Automated Action & Feedback: The results are relayed to Workflow Canvas™, which then sends corrective actions to PLC or other connected equipment to execute necessary adjustments, completing the automation loop.



Case Study: Fully Automated Laptop Inspection

WechatIMG122



Leveraging DaoAI’s high-speed, high-accuracy AOI system, one of our clients successfully built a fully automated laptop inspection system within just one month. This system performs comprehensive defect detection, but not limited to the following:
  • Screw height discrepancies
  • Connector alignment precision

Once the AOI system completes its inspection, Workflow Canvas™ aggregates the results and automatically triggers corrective actions. For instance, robotic arms are instructed to make real-time adjustments, ensuring a fully automated quality control workflow.



AI-Powered DaoAI AOI System

Designed for industrial automation, DaoAI’s AI-driven AOI System revolutionizes defect detection with:

  • Ultra-fast detection – Each region is inspected in just 10 milliseconds, leveraging advanced image optimization algorithms to detect microscopic details as small as 4x4 pixels.
  • Unmatched accuracy – Initial models achieve up to 99.7% precision, with defect miss rates and false positives both below 1%.
  • All Positive Data Training – The AI model requires as few as 1-20 images to learn and can be rapidly deployed in real-world environments.
  • Self-learning feedback loop – Mimicking human learning, the system continuously improves by integrating operator feedback into the training process.
  • Real-time inference – AI-powered defect detection occurs instantly, ensuring seamless integration with production lines.
  • Broad compatibility – Supports PLCs, mainstream industrial control systems, and GigE/USB3 industrial cameras for flexible deployment.
5.001 1

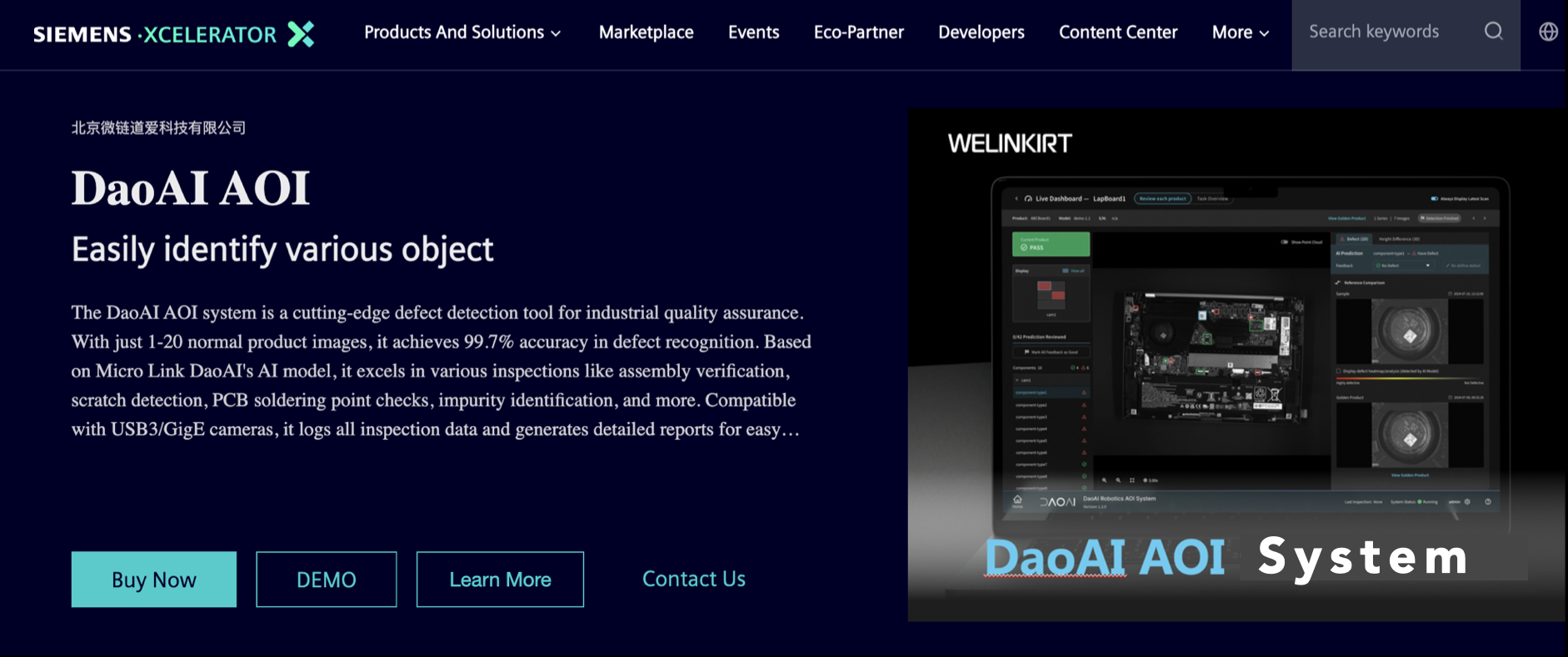

Seamless Integration via Siemens Xcelerator

DaoAI’s AOI System is now available on the Siemens Xcelerator platform, allowing manufacturers to purchase and integrate it effortlessly. Additionally, DaoAI offers custom AI model development servicestailored to specific industrial applications, including automotive manufacturing, electronics assembly, and more.



Contact our business and technical team today to build a fully customized vision inspection solution for your production needs.

DaoAI | Visual AI Solutions



FAQ



1. What is Workflow Canvas™, and how does it enhance industrial automation?

Workflow Canvas™ is Siemens' cloud-native IT/OT integration toolkit that enables intuitive, drag-and-drop workflow design for industrial processes. By integrating with DaoAI's Automated Optical Inspection (AOI) system, it allows manufacturers to orchestrate inspection workflows seamlessly, from initiating inspections to executing corrective actions, thereby enhancing efficiency and reducing defects.


2. How does the integration between Workflow Canvas™ and DaoAI's AOI system work?

The integration operates as follows:

  1. A Programmable Logic Controller (PLC) sends an inspection request to Workflow Canvas™.

  2. Workflow Canvas™ forwards this request to DaoAI's AOI system.

  3. The AOI system captures images, analyzes data, and detects anomalies such as assembly misalignments or defects.

  4. Based on the analysis, the system determines if the product is acceptable or not.

  5. Results are relayed back to Workflow Canvas™, which then sends corrective actions to the PLC or other connected equipment, completing the automation loop.


3. What are the key features of DaoAI's AI-powered AOI system?

DaoAI's AOI system offers:

  • Ultra-fast detection: Each region is inspected in just 10 milliseconds, detecting details as small as 4x4 pixels.

  • High accuracy: Initial models achieve up to 99.7% precision, with defect miss rates and false positives both below 1%.

  • All-positive data training: The AI model requires as few as 1-20 images to learn, enabling rapid deployment.

  • Self-learning feedback loop: The system continuously improves by integrating operator feedback into the training process.

  • Real-time inference: AI-powered defect detection occurs instantly, ensuring seamless integration with production lines.

  • Broad compatibility: Supports PLCs, mainstream industrial control systems, and GigE/USB3 industrial cameras for flexible deployment.


4. Can you provide a real-world example of this integration in action?

Yes. One client implemented a fully automated laptop inspection system using DaoAI's high-speed, high-accuracy AOI system. Within a month, they achieved comprehensive defect detection, including screw height discrepancies and connector alignment precision. Workflow Canvas™ aggregated the results and automatically triggered corrective actions, such as instructing robotic arms to make real-time adjustments, ensuring a fully automated quality control workflow.


5. How can manufacturers access and implement this integrated solution?

DaoAI's AOI system is available on the Siemens Xcelerator platform, allowing manufacturers to purchase and integrate it effortlessly. Additionally, DaoAI offers custom AI model development services tailored to specific industrial applications, including automotive manufacturing and electronics assembly.
