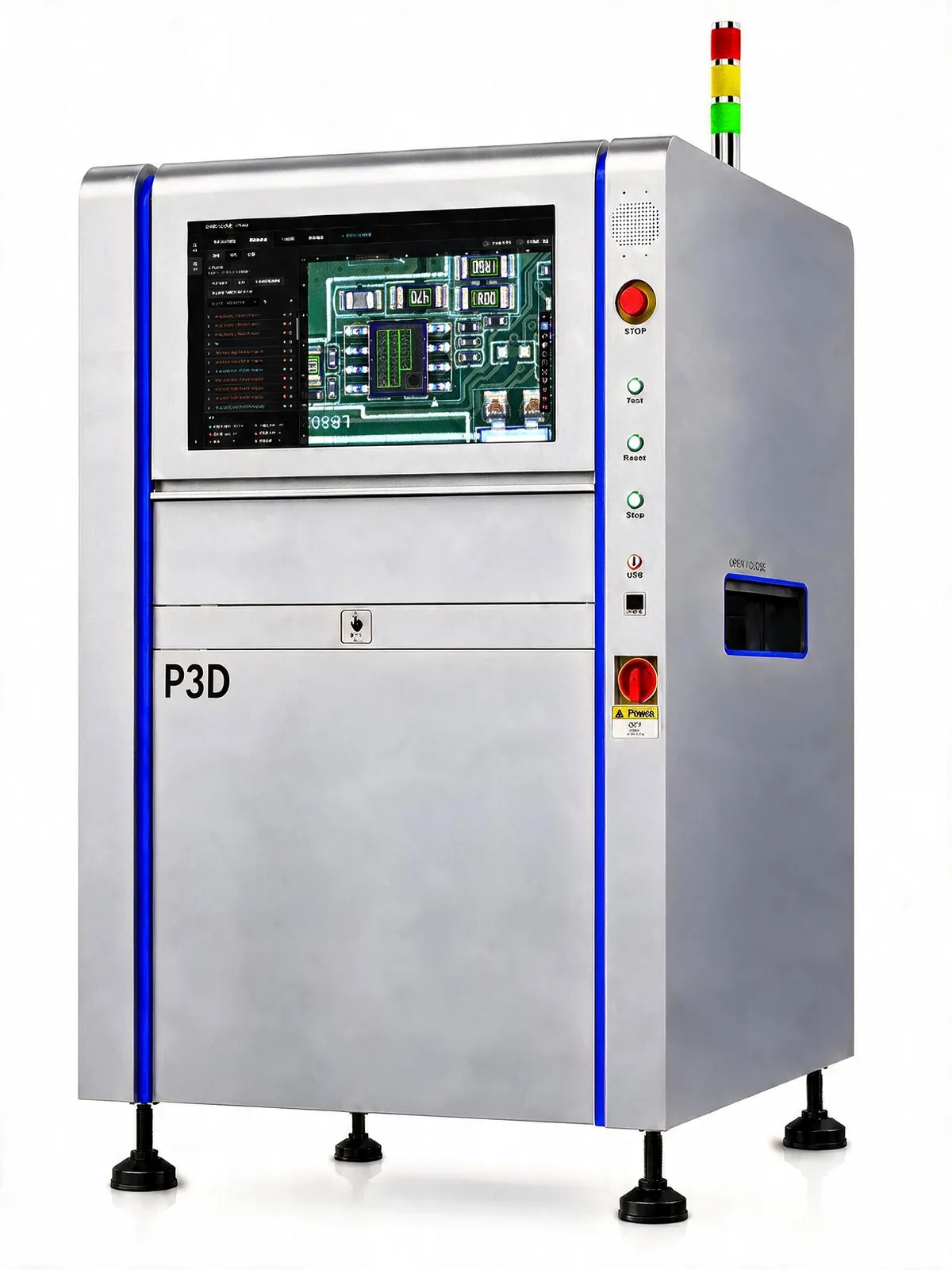

P3D Dual-Track Inline AOI Machine

Two tracks through one machine.

Dual-track 2D inline AOI for high-throughput production, with the same optics and core AI software as the P3.

26 MPCamera

10 µm/px (≈ 0.394 mil/px)Resolution

500 × 325 mm (≈ 19.69 × 12.8 in)Max board

Dual trackHandling

Key specifications.

Compare optics, board capacity and handling specifications to find the right fit for your production.

Metric specifications are shown with approximate imperial equivalents.

EVERYTHING ELSE

Clearance and thickness limits, the full inspection item list, software functions and integration detail are in the brochure rather than on this page.

Optics

Camera26 MP, global shutter

Resolution10 µm per pixel (≈ 0.394 mil per pixel), 51 × 51 mm (≈ 2.01 × 2.01 in) field of view

LensTelecentric

LightingRGB coaxial ring, multi-angle LED

Depth of field8 – 10 mm (≈ 0.315 – 0.394 in)

InferenceUnder 1 ms per component

Conveyor and board

Max board size50 × 50 mm (≈ 1.97 × 1.97 in) – 500 × 325 mm (≈ 19.69 × 12.8 in), per track

Board thickness0.3 – 6 mm (≈ 0.0118 – 0.236 in)

ClearanceTop 30 mm (≈ 1.18 in), bottom 20 mm (≈ 0.787 in). Custom on request

Smallest component0201, 0.3 mm (≈ 0.0118 in) pitch ICs. 01005 optional

Board handlingInline, dual track. Conveyor height 900 ± 25 mm (≈ 35.43 ± 0.984 in)

Double sidedTop and bottom side switching, automatic

Programming inputOne golden board — no CAD, Gerber, centroid file or component library required

Hardware specifications are reference values and may vary by configuration.

WHAT IT INSPECTS

Explore our inspection capabilities and plant integration features. Available checks depend on the machine and configuration. This machine also supports DIP / through-hole inspection.

The same core AI software across the range.

Auto-programming, feedback learning, model training and offline operation are standard on P3D, not options on a price list. The machines differ in optics and handling.

PROGRAMAI Auto-ProgrammingOne golden board to a running program in 30 seconds to 5 minutes. No CAD required.LEARNFeedback LearningReport a false call, update, run the board again. The rate comes down instead of the threshold.TRAINModel TrainingTrain on your own images, offline, for the defect nobody else inspects for.PLANTProduction IntegrationGauge R&R, Cpk, MES export, repair station, offline programming.
