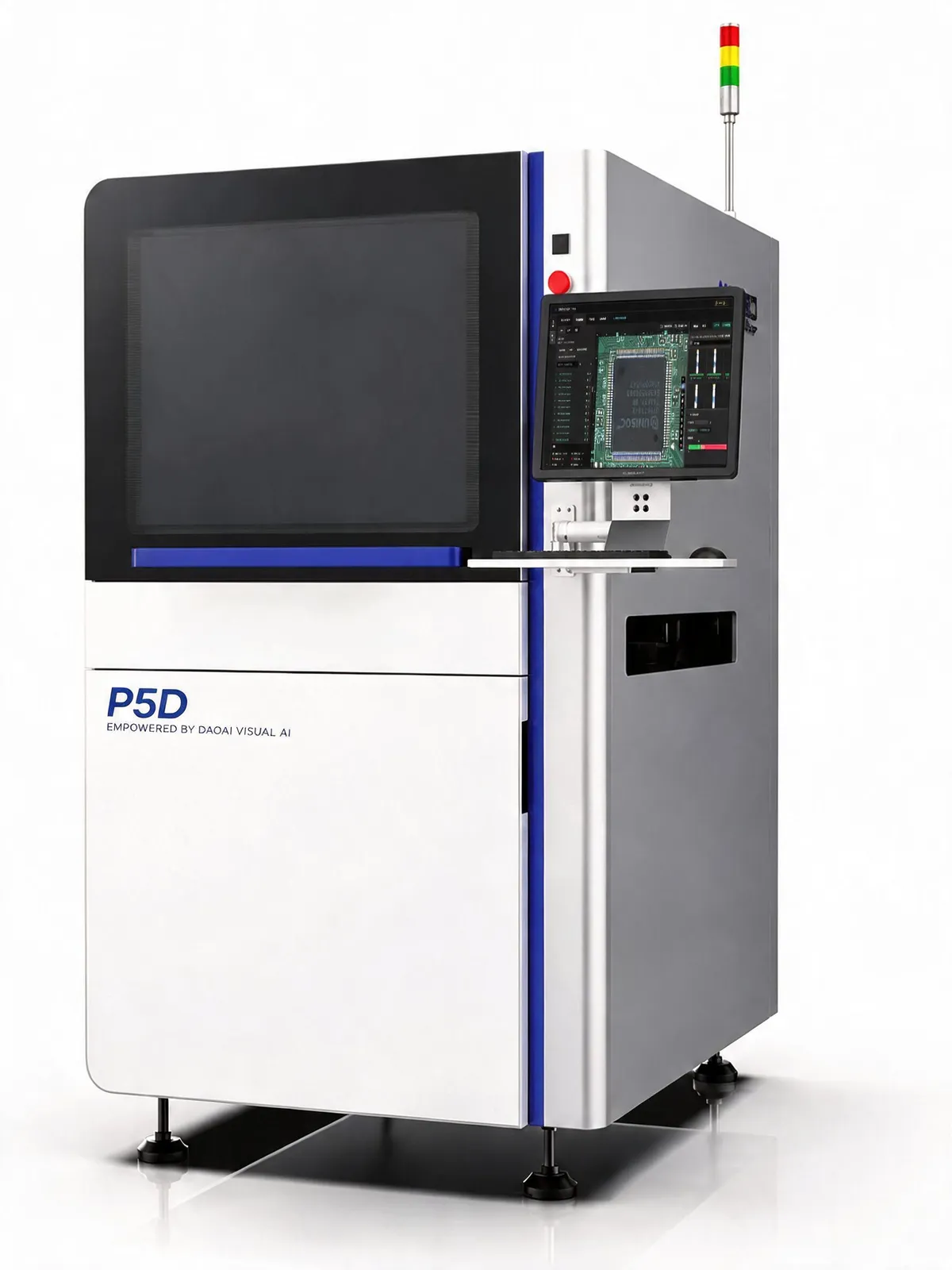

P5D Dual-Track Inline 3D AOI

Dual-track 3D inspection.

Dual-track 3D AOI for high-throughput production, with the same optics and software as the P5.

4-direction projection3D sensor

≤ 6 µm (≈ 0.236 mil)Height resolution

500 × 300 mm (≈ 19.69 × 11.81 in)Max board

Dual trackHandling

Key specifications.

Compare optics, board capacity and handling specifications to find the right fit for your production.

Metric specifications are shown with approximate imperial equivalents.

EVERYTHING ELSE

Clearance and thickness limits, the full inspection item list, software functions and integration detail are in the brochure rather than on this page.

Optics

Camera21 MP high-speed industrial camera

Resolution10 µm (≈ 0.394 mil) optical, 50 × 40 mm (≈ 1.97 × 1.57 in) field of view

3D sensorFour Scheimpflug structured-light projection units, one per direction

Height resolution≤ 6 µm (≈ 0.236 mil) height accuracy with the calibration tool. 25 mm (≈ 0.984 in) measurement range

SpeedOver 10 cm² (≈ 1.55 in²) per second

Conveyor and board

Max board size50 × 50 mm (≈ 1.97 × 1.97 in) – 500 × 300 mm (≈ 19.69 × 11.81 in), per track

Board thickness0.6 – 5 mm (≈ 0.0236 – 0.197 in)

Component heightTop 50 mm (≈ 1.97 in), bottom 40 mm (≈ 1.57 in)

Smallest component0603 metric, 0201 inch

Board handlingInline, dual track. Conveyor height 900 ± 20 mm (≈ 35.43 ± 0.787 in)

Programming inputOne golden board — no CAD, Gerber, centroid file or component library required

Hardware specifications are reference values and may vary by configuration.

WHAT IT INSPECTS

Explore our inspection capabilities and plant integration features. Available checks depend on the machine and configuration. This machine also supports DIP / through-hole inspection.

The same core AI software across the range.

Auto-programming, feedback learning, model training and offline operation are standard on P5D, not options on a price list. The machines differ in optics and handling.

PROGRAMAI Auto-ProgrammingOne golden board to a running program in 30 seconds to 5 minutes. No CAD required.LEARNFeedback LearningReport a false call, update, run the board again. The rate comes down instead of the threshold.TRAINModel TrainingTrain on your own images, offline, for the defect nobody else inspects for.PLANTProduction IntegrationGauge R&R, Cpk, MES export, repair station, offline programming.
